Quadratic Regression in SPSS

Sometimes linear regression doesn’t quite cut it – particularly when we believe that our observed relationships are non-linear.  For this reason, we should turn to other types of regression.  This page is a brief lesson on how to calculate a quadratic regression in SPSS.  As always, if you have any questions, please email me at MHoward@SouthAlabama.edu!

The typical type of regression is a linear regression, which identifies a linear relationship between predictor(s) and an outcome.  Sometimes our effects are non-linear, however.  In these cases, we need to apply different types of regression.

A common non-linear relationship is the quadratic relationship, which is a relationship that is described by a single curve.  In these instances, the relationship between two variables may look like a U or an upside-down U.  Often, we call the latter of these relationships (the upside down U) a “too much of a good thing” effect.  That is, when one variable goes up, then the other goes up too; however, once you get to a certain point, the relationship goes back down.  For example, conscientiousness may relate to life satisfaction.  If you are hard working, then you are generally happier with your life.  However, once you get to a certain level of conscientiousness, your life satisfaction might go back down.  If you are too hard working, then you may be stressed and less happy with your life.

There is more that could be stated about quadratic regression, but we’ll keep it simple.  To calculate a quadratic regression, we can use SPSS.  If you don’t have a dataset, you can download the example dataset here. In the dataset, we are investigating the relationship of conscientiousness and life satisfaction.

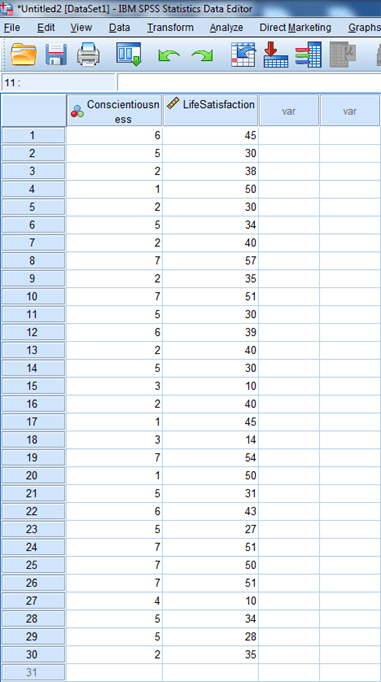

The data should look something like this:

Quadratic Regression in SPSS 2

If your dataset looks differently, you should try to reformat it to resemble the picture above. The instructions below may be a little confusing if your data looks a little different.

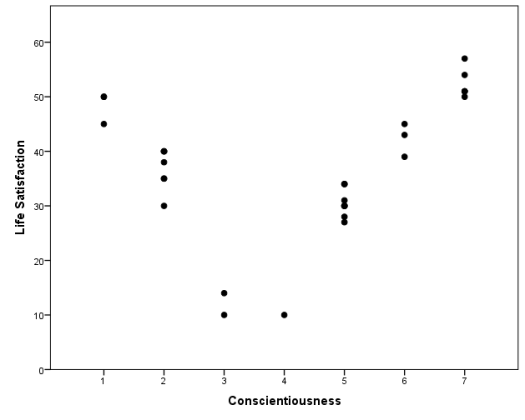

First, we could create a scatter plot of the relationship between conscientiousness and life satisfaction. As you can see, there is a clear U-shape to the data, which indicates that quadratic regression should be applied.

Quadratic Regression in SPSS 1

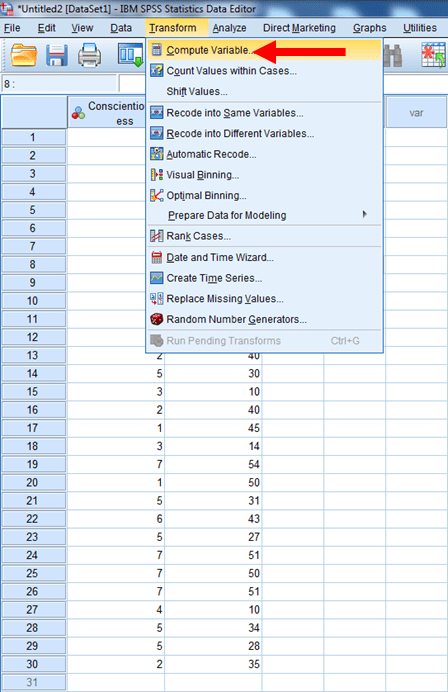

To perform a quadratic regression, we first need to create a new variable.  To do so in SPSS, go to Transform then click on Compute Variable.

Quadratic Regression in SPSS 3

Now, we want to create a variable that is conscientiousness-squared.  To do so, we can click on conscientiousness in the left-hand-side, then click on the arrow highlighted below.  Then, type an asterisks (*).  Finally, click on conscientiousness in the left-hand-side again, then click on the arrow highlighted below.  This will result in conscientiousness*conscientiousness, which is conscientiousness-squared.  Lastly, label your target variable in the upper left-hand box.

Quadratic Regression in SPSS 4

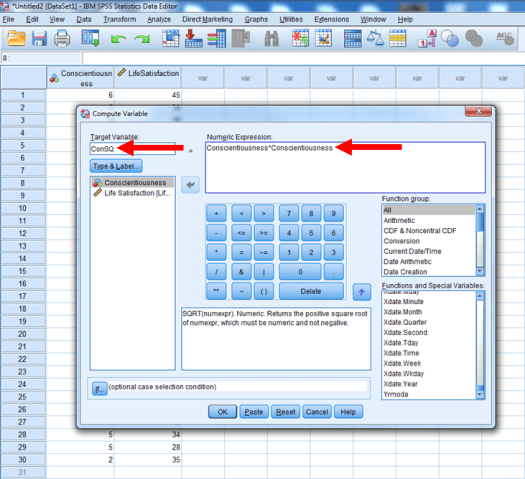

If you did it correctly, your window should look like this below.  I labeled the new variable ConSQ.

Quadratic Regression in SPSS 5

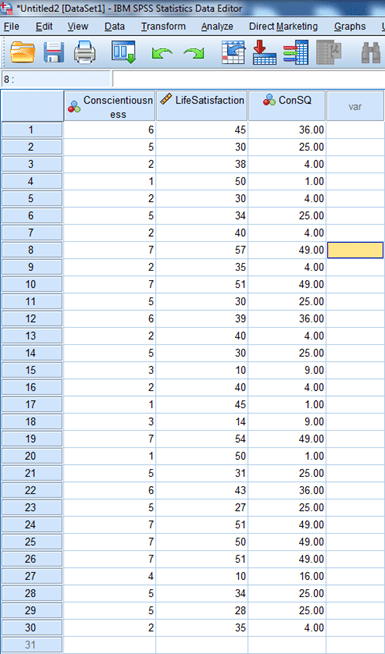

Once you press OK, your dataset should look something like this:

Quadratic Regression in SPSS 6

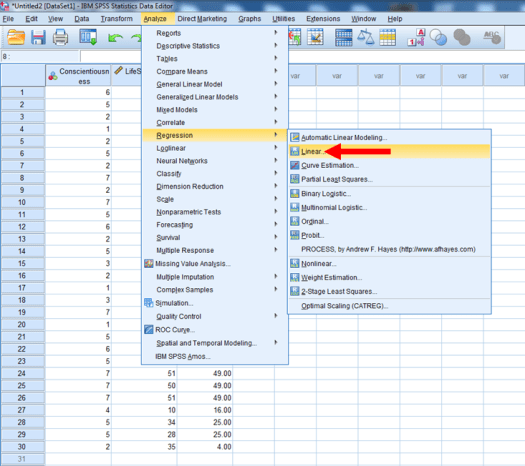

Now, we are going to perform a regression as usual.  Click on Analyze, Regression, and then Linear.

Quadratic Regression in SPSS 7

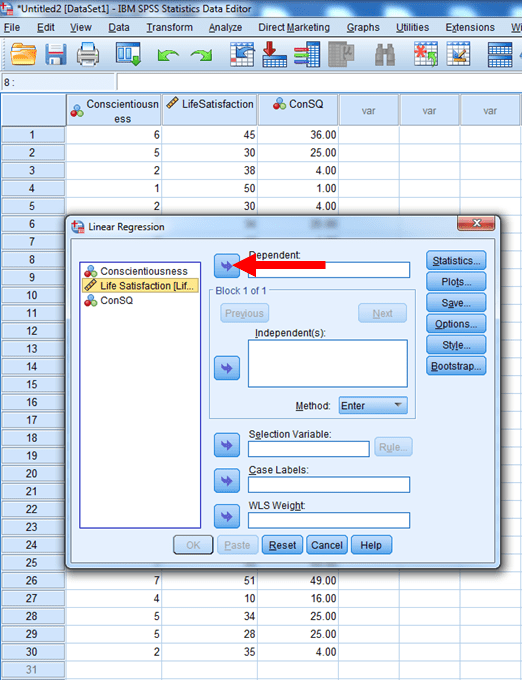

Place your outcome variable in the Dependent box, as seen below:

Quadratic Regression in SPSS 8

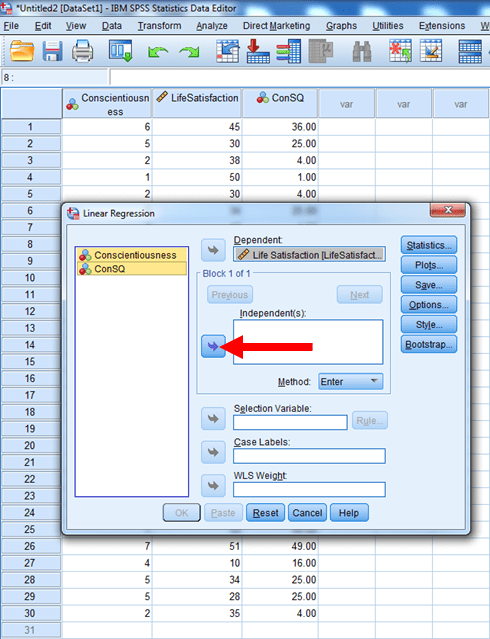

Place BOTH your predictors in the independent(s) box, as seen below:

Quadratic Regression in SPSS 9

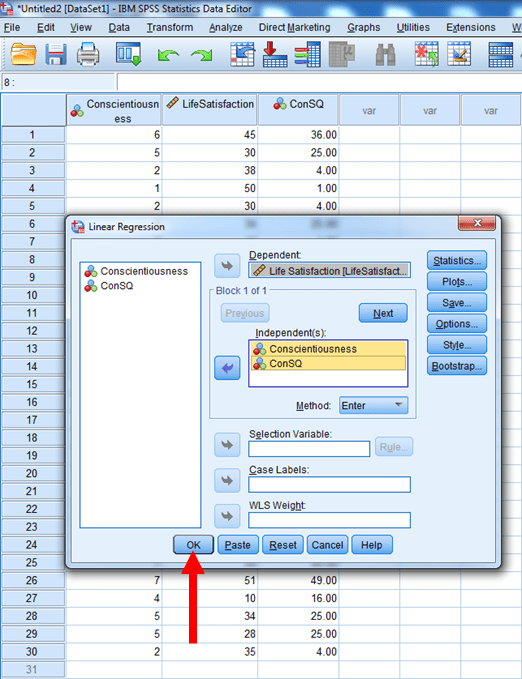

Then press OK.

Quadratic Regression in SPSS 10

We should get results! Yay!

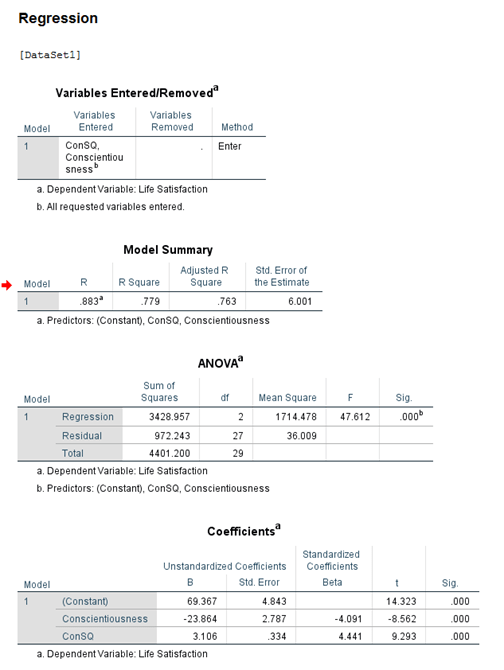

Quadratic Regression in SPSS 11

If you need help reading this table, take a look at my Regression in SPSS guide.  Otherwise, we can clearly see that the unstandardized beta for conscientiousness is -23.864, and the unstandardized beta for its squared values is 3.106.  Both of these are statistically significant (p < .001).  When interpreting quadratic effects, however, we only interpret the significance of the highest-order effect – in this case, the squared predictor.  So, we would say that a significant quadratic effect was seen between conscientiousness and life satisfaction, and the relationship could be described by a single curve.  We would then look at the scatter plot between the two to identify the shape of the curve, which resembled a U.  Lastly, we could identify that the overall R-Square of the model was .78, which is very high for the social sciences!

Of course, the results provide other information, which may be useful for your certain purposes, but the current guide just covers the basics.

Now you should be able to perform a quadratic regression in SPSS.  As always, if you have any questions or comments, please email me a MHoward@SouthAlabama.edu!
